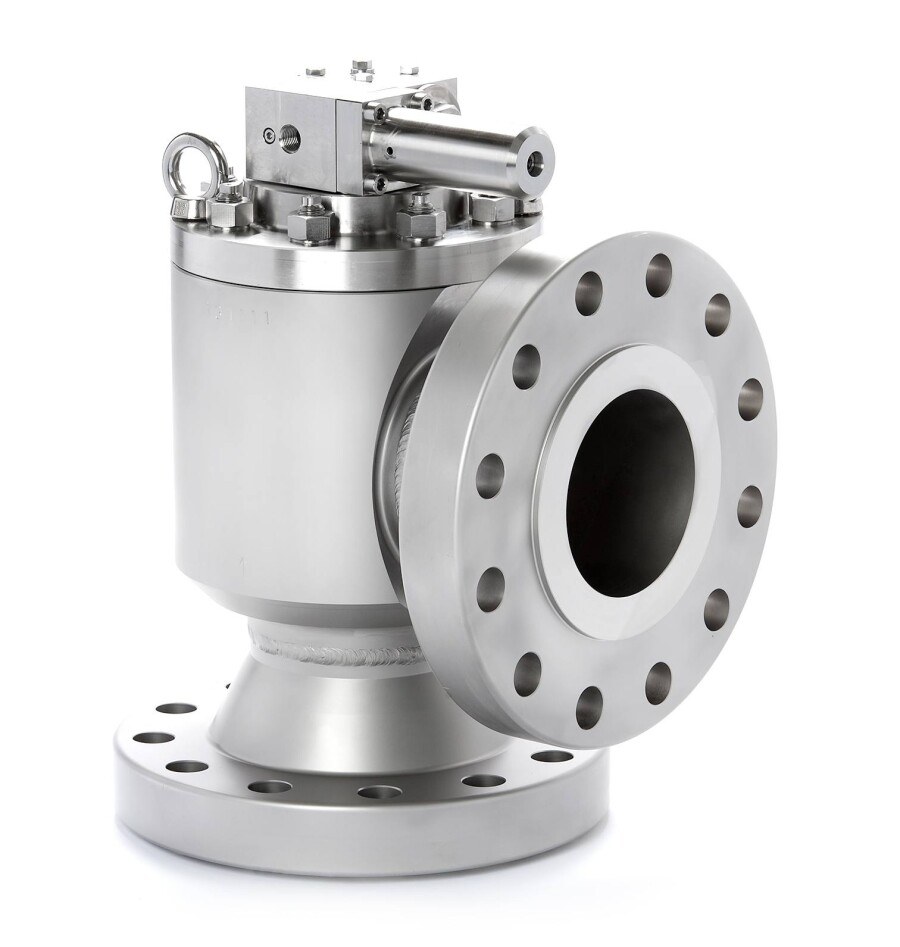

Pilot-operated angle valve
RP820 Eck
Application
- Liquids, gases up to 130 °C
Standard
- Connection: flange DN 40-150
- Setting ranges P1: 1-5 / 4-12 /
10-20 / 15-40 bar - Kvs value: 20 - 250 m3/h
- Body made of steel
- Pilot valve made of stainless steel
- Soft or metallic seal
- Throttle block with integrated strainer
- Internal piping made of stainless steel
Options:
- Special materials such as SS, Duplex,
Super Duplex, Hastelloy® - Various O-ring and seal materials suitable for your medium
- Hard-faced valve cone and seat
- Nominal pressure level up to PN 100
- ANSI or JIS flanges, welding ends

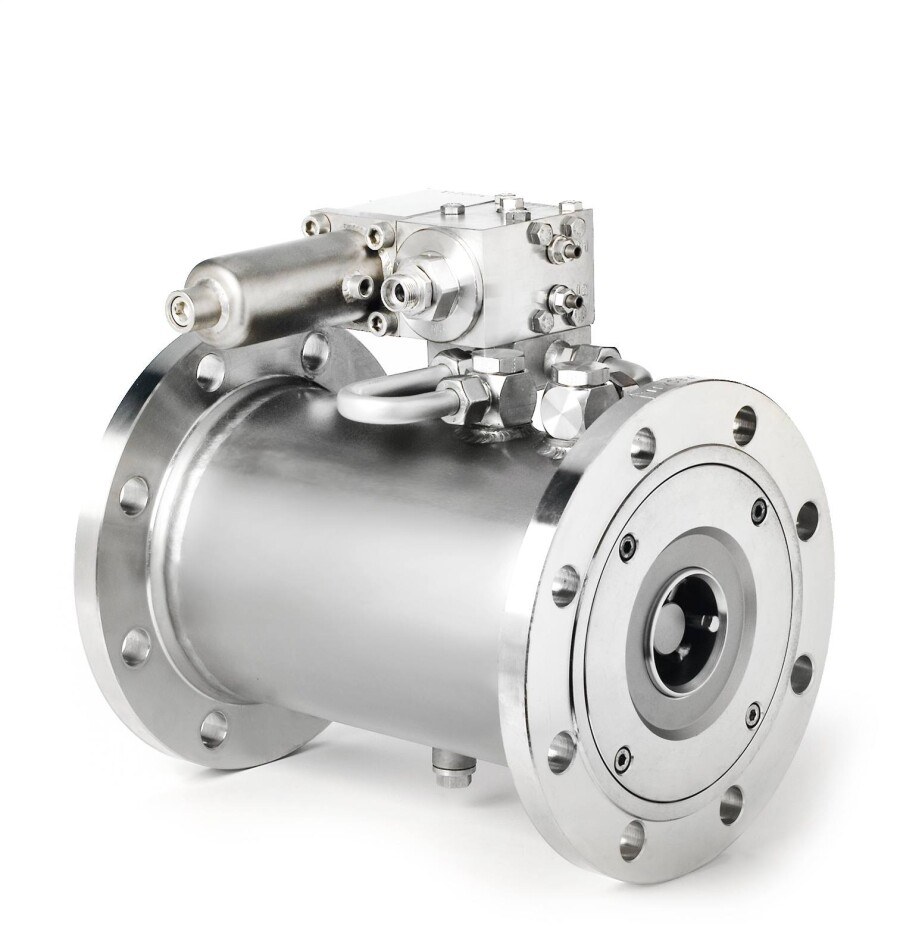

Pilot-operated valve
RP824
Application
- Liquids up to 130 °C
Standard
- Connection: flange DN 100-800
- Setting ranges P1: 2 - 5 / 4 - 12 / 10 - 20 bar
- Kvs value: 60 - 2100 m3/h
- Body made of steel
- Pilot valve made of stainless steel
- Soft or metallic seal
- Throttle block with integrated strainer
- Internal piping made of stainless steel
Options:
- Special materials such as SS, Duplex,
Super Duplex, Hastelloy® - Various O-ring and seal materials
suitable for your medium - Hard-faced valve cone and seat
- Nominal pressure level up to PN 100
- ANSI or JIS flanges, welding ends
