Standard cast valve
UV4.5
Application
- Liquids, gases up to 130 °C
- Steam up to 150 °C
Standard
- Connection: flange DN 15-100
- Setting ranges:
0,3-1,1 / 0,8-2,5 / 2-5 / 4,5-10 bar - Kvs value: 5 - 65 m3/h
- Body material: 1.0619
- Trim materials: SS 316L
- Closed bonnet
- Leakage line connection
and sealed adjusting screw - Sense line connection
- Elastomers: EPDM
Options:
- Design as a differential pressure controller
- Body material: 1.4408
- Elastomers: FKM, PTFE protection foil
- Elastomers as per FDA and USP Class VI

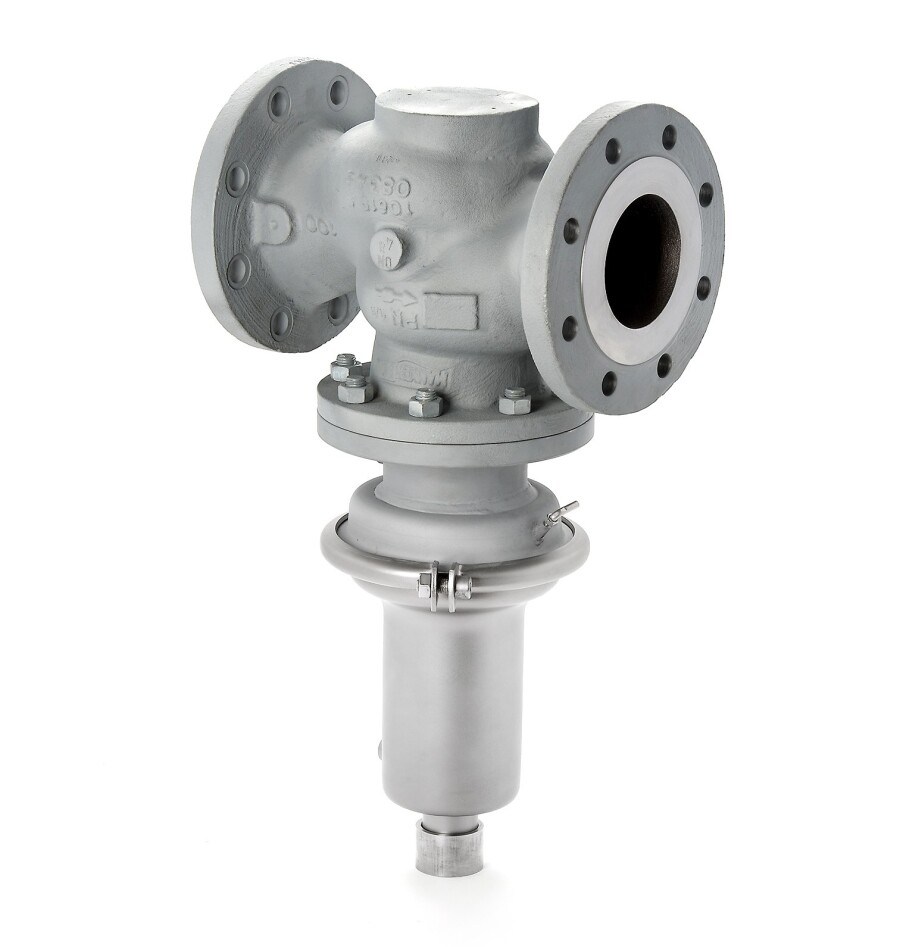

Standard cast valve for large flow rates
UV4.1
Application
- Liquids, gases up to 130 °C
- Steam up to 200 °C
Standard
- Connection: flange DN 15-150
- Setting ranges P1: 0,8-2,5 / 2-5 / 4,5-10 bar
- Kvs value: 4 - 160 m³/h
- Body material: 1.0619
- Trim materials: stainless steel
- Without bonnet
- Sense line connection
Options:
- Setting ranges P1: 0,02-0,25 / 0,1-0,6 / 0,2-1,2 bar
- Body material: stainless steel
- Closed bonnet
- Leakage line connection
- Elastomere materials suitable for your medium
